535-550W MBB

3-Stage EL Testing Starting from the Stringer to Ensure Top Quality
Thanks to micro-gap technology, cell spacing and cell stress are reduced, resulting in improved module efficiency.
Minimizes shading effect for reduced power loss.
High performance in low-light conditions.
Exceptional reliability certified by TUV and TSE.
High-Precision Solar Simulator PASAN A+A+A+ (Meyer Burger)
High efficiency and fast investment cycle in less space for utility and commercial projects.

1 YEAR

Product Material and Workmanship Warranty

1 YEAR

Linear Power Output Warranty

Standard Test Conditions	Irradiance 1000 W/m², Cell Temperature 25 °C, AM = 1.5
STC	Irradiance 1000 W/m2, Cell temperature 25°C, Air Mass AM=1.5
Nominal Test Conditions	Irradiance 800 W/m², Ambient Temperature 20 °C, AM = 1.5, Wind Speed: 1 m/s
NOCT	Irradiance 800W/m2, Ambient temperature 20°C, Air Mass AM=1,5
Wind speed	1 m/s
Power Measurement Uncertainty	+/-3%
Power measurement tolerance	+/-3%

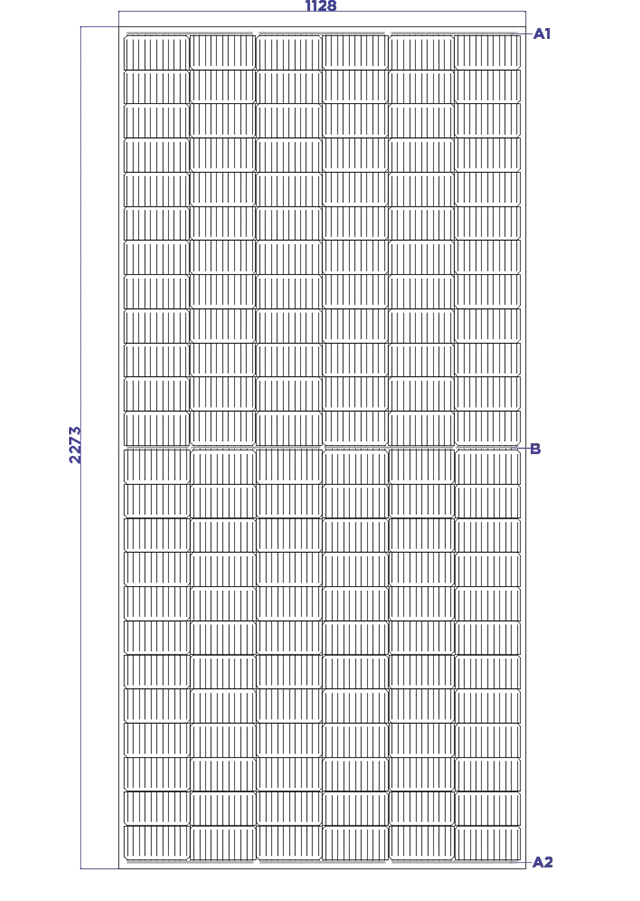

Dimensions	2279 x 1134 x 35 mm
Weight	28,9 kg ± 0,3 kg
Cell Type and Size	PERC Mono 182 x 91mm (144 pcs)
Glass	3.2 mm AR-coated tempered glass, low-iron
Frame	Anodized aluminum alloy
Junction Box	IP68, 3 diodes
Output Cables	4.0 mm², (+)250 / (-)350 mm (Vertical) or (+)1300 / (-)1350 mm (Horizontal)
Connectors	Stäubli MC4 EVO2
Maximum Test Load	Front: 5400 Pa / Rear: 2400 Pa
Hail Test	Resistant to hail impact of up to 25 mm diameter at a maximum speed of 23 m/s

Pmax Temperature Coefficient	-0.35 %/°C
Voc Temperature Coefficien	-0.27 %/°C
Isc Temperature Coefficient	+0.05 %/°C
Operating Temperature	-40～+85 °C
Nominal Operating Cell Temperature (NOCT)	45 ± 2 °C

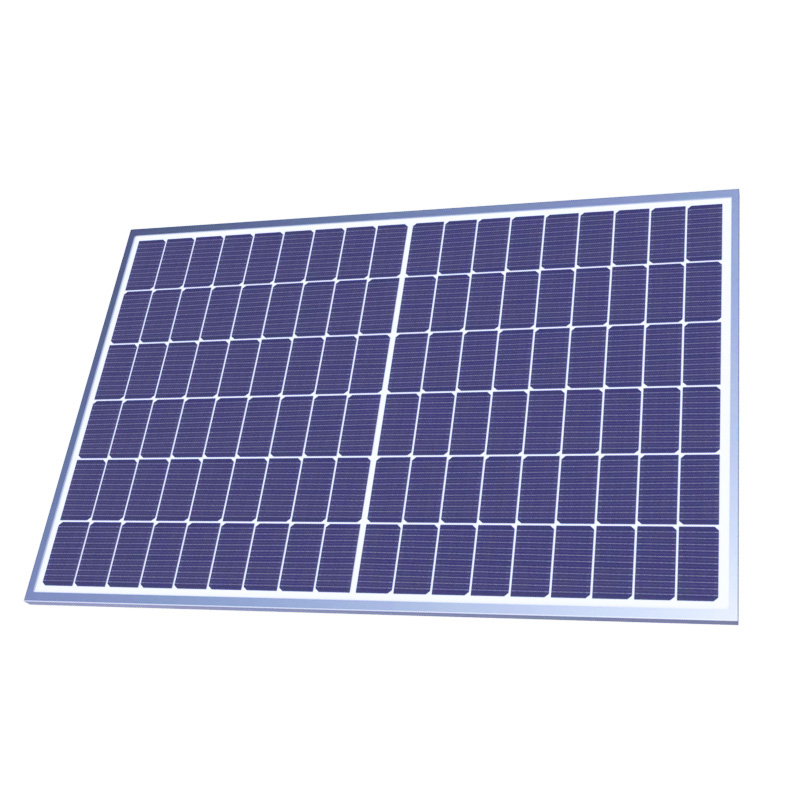

We have designed new 182mm cell panels featuring Multi-Busbar and Half-Cut technologies. In our state-of-the-art manufacturing facility, we have maximized module efficiency and power output.
